Liyi Salt Spray Test Chamber with ±1°C Accuracy IP56 Protection and 12 Months Warranty for Corrosion Resistance Testing

1
MOQ
Liyi Salt Spray Test Chamber with ±1°C Accuracy IP56 Protection and 12 Months Warranty for Corrosion Resistance Testing
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
Dokładność: ± 1 ° C.
Moc: 500 W.
Klasa ochronna: IP56
Woltaż: 220 V, 380 V, 240 V, 110 V
Objętość komory testowej: 108L/270L/600L/1440L lub wykonane na zamówienie
Ilość natrysku: 1,0 ~ 2,0 ml/80 cm2/godz
Ph: 6,5~7,2 3,0~3,2
Temperatura komory testowej: NSS.ACSS 35°C±1°C/CASS 50°C±1°C
Temperatura powietrza nasyconego: NSS.ACSS 47°C±1°C/CASS 63°C±1°C
Kontroler: Ekran dotykowy PID lub LCD
Zasilacz: 220V 50Hz / 380V 60hZ
Maksymalna pojemność cieczy: 15L/25L/40L/40L
Rozmiar komory testowej: 60*45*40 cm/90*60*50 cm/120*100*50 cm/200*120*60 cm
Objętość zewnętrzna: 107*60*118 cm/141*88*128 cm/190*130*140 cm/270*150*150 cm
Dodawanie wody: Automatyczny
Podkreślić:

±1°C Accuracy Salt Spray Test Chamber

,

IP56 Protection Salt Fog Test Chamber

,

12 Months Warranty Corrosion Test Equipment
Podstawowe informacje
Miejsce pochodzenia: Guangdong, Chiny
Nazwa handlowa: Liyi
Zapłata
opis produktu
Liyi Paint Salt Fog Corrosion Test Equipment Chamber Salt Spray Test Machine
The Liyi salt spray test machine determines the corrosion resistance of iron metals or their inorganic/organic coatings, including electroplating, anodizing, conversion coatings, and paint finishes.
This accelerated corrosion test evaluates protective finishes by exposing coated samples to corrosive conditions. The appearance of corrosion products is assessed over time, with test duration varying based on the coating's corrosion resistance.
Key Features
  • Bo Nute Principle spray nozzle prevents saline crystallization while atomizing test solution
  • Digital microcomputer controller ensures precise temperature regulation
  • Comprehensive display shows temperature, humidity, pressure, spray capacity, and time
  • Complies with international test specifications
Technical Specifications
Model LY-609-60 LY-609-90 LY-609-120 LY-609-200
Test chamber capacity (L) 108L 270L 600L 1440L
Max capacity of test liquid (L) 15 25 40 40
Test chamber size L*W*D (cm) 60*45*40 90*60*50 120*100*50 200*120*60
Outside Volume L*W*D (cm) 107*60*118 141*88*128 190*130*140 270*150*150
Power AC220V,10A AC220V,15A AC220V,30A AC220V,30A
Temperature Parameters
Test Type Test Chamber Air Cylinder
NSS/ACSS 35℃±1℃ 47℃±1℃
CASS 50℃±1℃ 63℃±1℃
Additional Specifications
  • Water adding device: Automatic
  • Spray quantity: 1.0~2.0ml/80cm²/h
  • PH range: 6.5~7.2 / 3.0~3.2

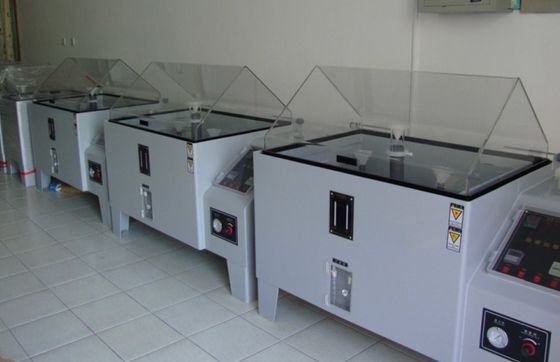

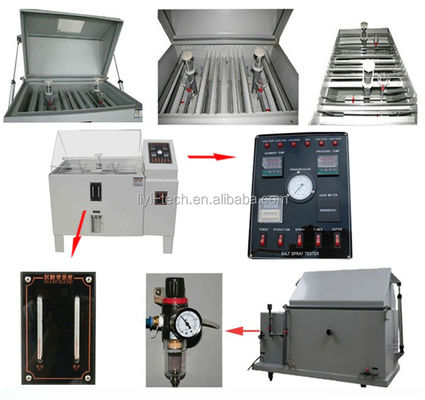

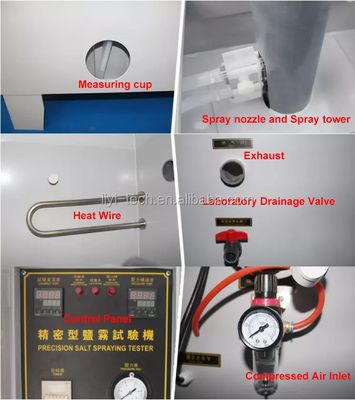

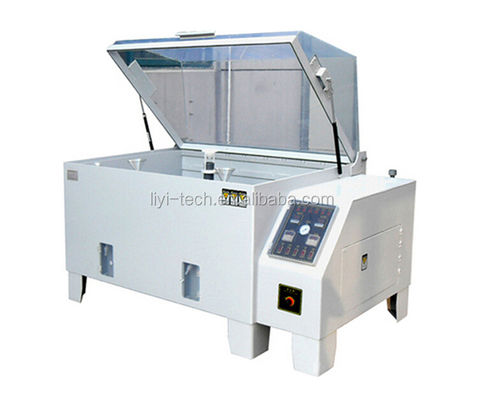

Product Images
Liyi Salt Spray Test Chamber with ±1°C Accuracy IP56 Protection and 12 Months Warranty for Corrosion Resistance Testing 0
Liyi Salt Spray Test Chamber with ±1°C Accuracy IP56 Protection and 12 Months Warranty for Corrosion Resistance Testing 1
Liyi Salt Spray Test Chamber with ±1°C Accuracy IP56 Protection and 12 Months Warranty for Corrosion Resistance Testing 2
Liyi Salt Spray Test Chamber with ±1°C Accuracy IP56 Protection and 12 Months Warranty for Corrosion Resistance Testing 3
Company Profile
Dongguan Liyi Environmental Technology Co., Ltd is a high-tech manufacturing enterprise specializing in environmental testing equipment. With advanced technology, experienced personnel, and comprehensive quality management, we serve customers in over 150 countries.
Our product range includes simulated environmental testers and material testing equipment for various industries. Based in Dongguan, China's manufacturing hub, we maintain a service office in Kunshan to better serve our customers.
Frequently Asked Questions
1. Are you the manufacturer? What is your warranty and after-sales service policy?
Yes, we are a professional manufacturer of testing equipment. All machines come with a 12-month warranty (extended to 14 months for overseas shipments). We provide free maintenance during warranty and offer technical support via email or video call, with solutions typically provided within 24-48 hours.
2. What is your standard delivery time?
Standard machines are typically available from stock. For non-stock items, delivery time is 15-20 working days after deposit receipt. We can accommodate urgent requests with special arrangements.
3. Do you offer customization and OEM services?
Yes, we provide both standard and customized machines according to customer requirements, including OEM/ODM services with your logo on the equipment.
4. How is the machine installed and operated?
Most machines are shipped fully assembled - just connect the power cable to begin operation. We provide English operation videos and can assist with on-site installation when necessary.
