cechy Galeria opis produktu Poprosić o wycenę

cechy

specyfikacje

Dokładność: NSS.ACSS 35°C±1°C/CASS 50°C±1°C

Moc: 650 W.

Klasa ochronna: IP56

Woltaż: 220 V, 380 V, 240 V, 110 V

Temperatura komory testowej: NSS.ACSS 35°C±1°C/CASS 50°C±1°C

Pojemność komory testowej: 180L, 270L, 600L, 1440L lub wykonane na zamówienie

Ilość natrysku: 1,0 ~ 2,0 ml/80 cm2/godz

Ph: 6,5~7,2 3,0~3,2

Kontroler: Ekran dotykowy PID lub LCD

Temperatura powietrza nasyconego: NSS.ACSS 47°C±1°C/CASS 63°C±1°C

Rozmiar komory testowej: 60*45*40cm, 90*60*50cm, 1200*1000*500cm, 1500*1000*500cm, 2000*1000*500cm

Maksymalna pojemność cieczy: 15L, 25L, 40L

Zasilacz: AC220V,10A; AC220V,15A; AC220V, 30A

Spryskiwacz: Zasada Bo Nute’a

Wyświetl parametry: Temperatura, wilgotność, ciśnienie, wydajność natrysku, czas

Podkreślić:

ACSS 35°C±1°C Salt Spray Test Chamber

CASS 50°C±1°C Salt Fog Test Chamber

180L Capacity Corrosion Test Chamber

Podstawowe informacje

Miejsce pochodzenia: Guangdong, Chiny

Nazwa handlowa: LIYI

Zapłata

Galeria

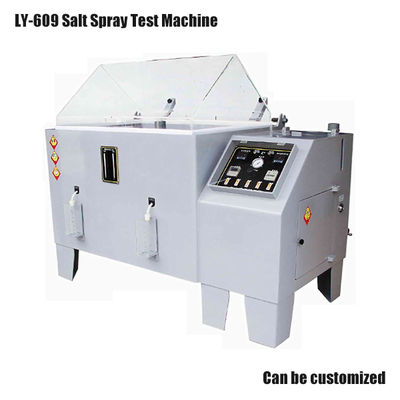

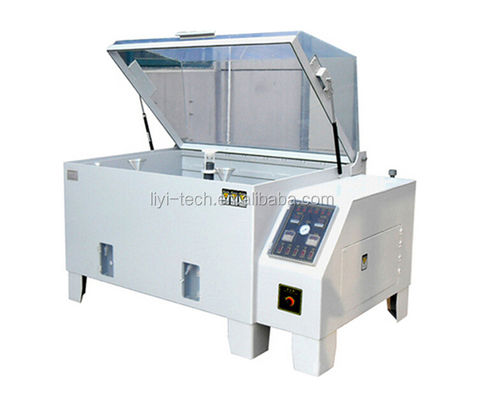

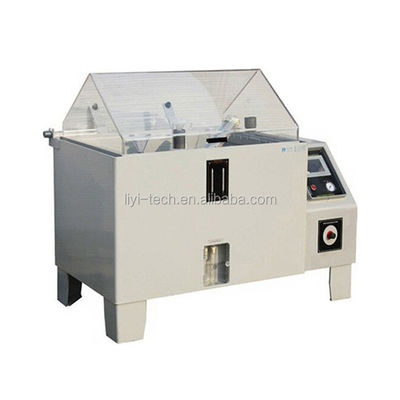

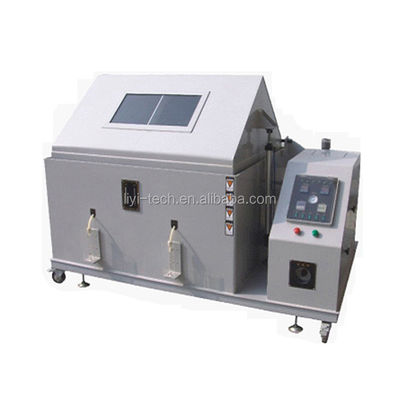

Liyi Salt Spray Test Chamber with ACSS 35°C±1°C and CASS 50°C±1°C for NSS Testing and 180L Capacity

opis produktu

Liyi Salt Fog Corrosion Test Chamber NSS Testing Lab Electronic Salt Spray Tester for Battery Metal Test

The Liyi Salt Fog Corrosion Test Chamber is designed to evaluate the corrosion resistance of metal materials and their protective coatings, including electroplating, anodizing, conversion coatings, and paint finishes. This accelerated corrosion testing equipment helps predict material suitability by simulating harsh environmental conditions.

Key Features

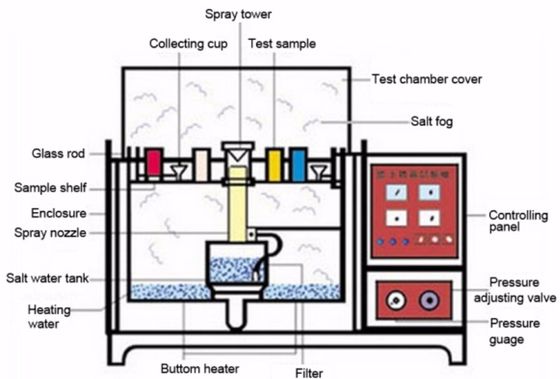

Advanced spray nozzle system based on the Bo Nute Principle, ensuring saline water atomization without crystallization
Precision digital microcomputer controller for accurate temperature regulation
Comprehensive display showing temperature, humidity, pressure, spray capacity, and test duration
Compatible with international testing standards worldwide

Technical Specifications

Model	LY-609-60	LY-609-90	LY-609-120	LY-609-150	LY-609-200
Design Standard	GB/T 10587-2006, GB/T 10125-1997, JIS-D0201, H8502, H8610, K5400, Z2371
Test Chamber Capacity (L)	108L	270L	600L	750L	1000L
Temperature (Test Chamber)	NSS/ACSS: 35°C±1°C \| CASS: 50°C±1°C
Temperature (Saturated Air Cylinder)	NSS/ACSS: 47°C±1°C \| CASS: 63°C±1°C
Test Chamber Size (L×W×D cm)	60×45×40	90×60×50	120×100×50	150×100×50	200×100×50
Max Capacity of Test Liquid (L)	15	25	40	40	40
Power	AC220V, 10A	AC220V, 15A	AC220V, 30A

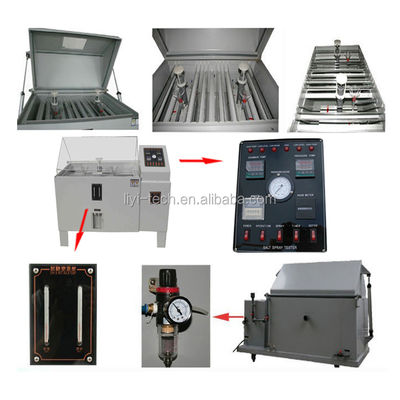

Product Images

Storage Information

Selected models are maintained in stock for urgent purchase requirements.

Frequently Asked Questions

1. Are you the manufacturer? What about after-sales service and warranty?

We are a professional manufacturer of testing equipment with comprehensive after-sales support. All machines include a 12-month warranty from shipment date, with an additional 2-month extension for sea transportation. We provide free maintenance during the warranty period and offer technical support via email or video consultation, with solutions typically provided within 24-48 hours of problem identification.

2. What is the delivery time?

Standard models are typically available for immediate shipment if in stock. For out-of-stock standard machines, delivery time is approximately 15-20 working days after deposit receipt. Urgent orders receive priority handling.

3. Do you accept customization and OEM services?

Yes, we offer both standard and customized machines to meet specific requirements, including OEM services with client branding.

4. How is the machine installed and operated?

Most machines are shipped fully assembled, requiring only power connection. We provide English operation videos and can assist with on-site installation when necessary.

Company Profile

Dongguan Liyi Environmental Technology Co., Ltd is a high-tech enterprise specializing in environmental testing equipment. With production facilities in Dongguan and a service office in Kunshan, we serve customers in over 150 countries. Our product range includes environmental test chambers, material testing equipment, and customized solutions that meet international standards.
