1700℃ Laboratory Muffle Furnace with 30℃/min Heating Rate

1
MOQ
1700℃ Laboratory Muffle Furnace with 30℃/min Heating Rate
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
Moc: 220 V/380 V.
Precyzja kontroli temperatury: ± 1 ℃
szybkość ogrzewania: 30 ℃/min
Temperatura pracy: 1600 ℃
Zakres temperatur: Rt ~ 1700 ℃
rozmiar pieca: 200*150*150 mm / 300*200*200 mm
Rozmiar zewnętrzny: 700*670*930 mm / 750*660*1020 mm
Waga: 190 kg / 300 kg
Ocena mocy: 5kW / 9kW
Temperatura końcowa: 1800℃
Typ termopary: Typ B.
Element grzewczy: pręt krzemowo-molibdenowy
Tryb wyświetlania: kolorowy wyświetlacz LED
Materiał pieca: Wysokie tlenek glinu polikrystaliczny włókno ceramiczne
Struktura pieca: Podwójna warstwowa struktura chłodzenia powietrza
Podkreślić:

1700℃ laboratory muffle furnace

,

high-speed heating muffle furnace

,

industrial drying oven with warranty
Podstawowe informacje
Miejsce pochodzenia: CHINY
Nazwa handlowa: LIYI
Numer modelu: Liyi
Zapłata
opis produktu

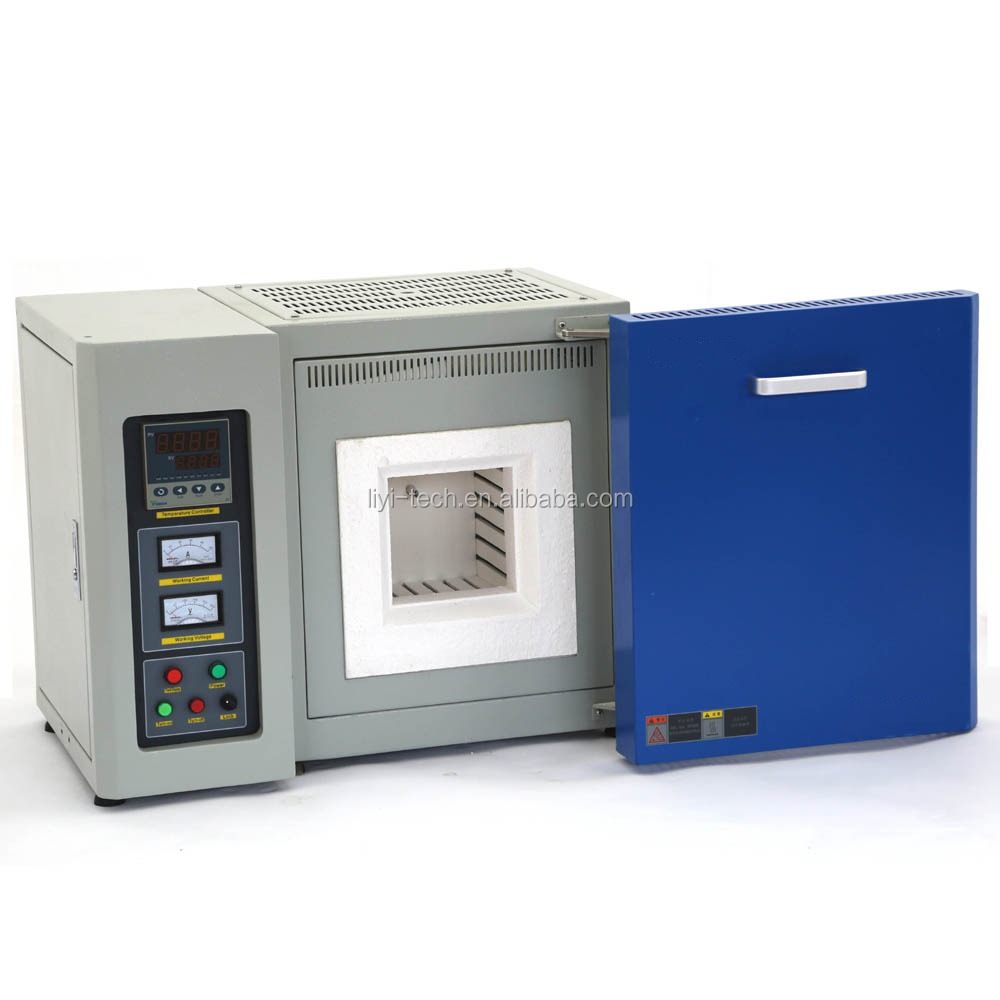

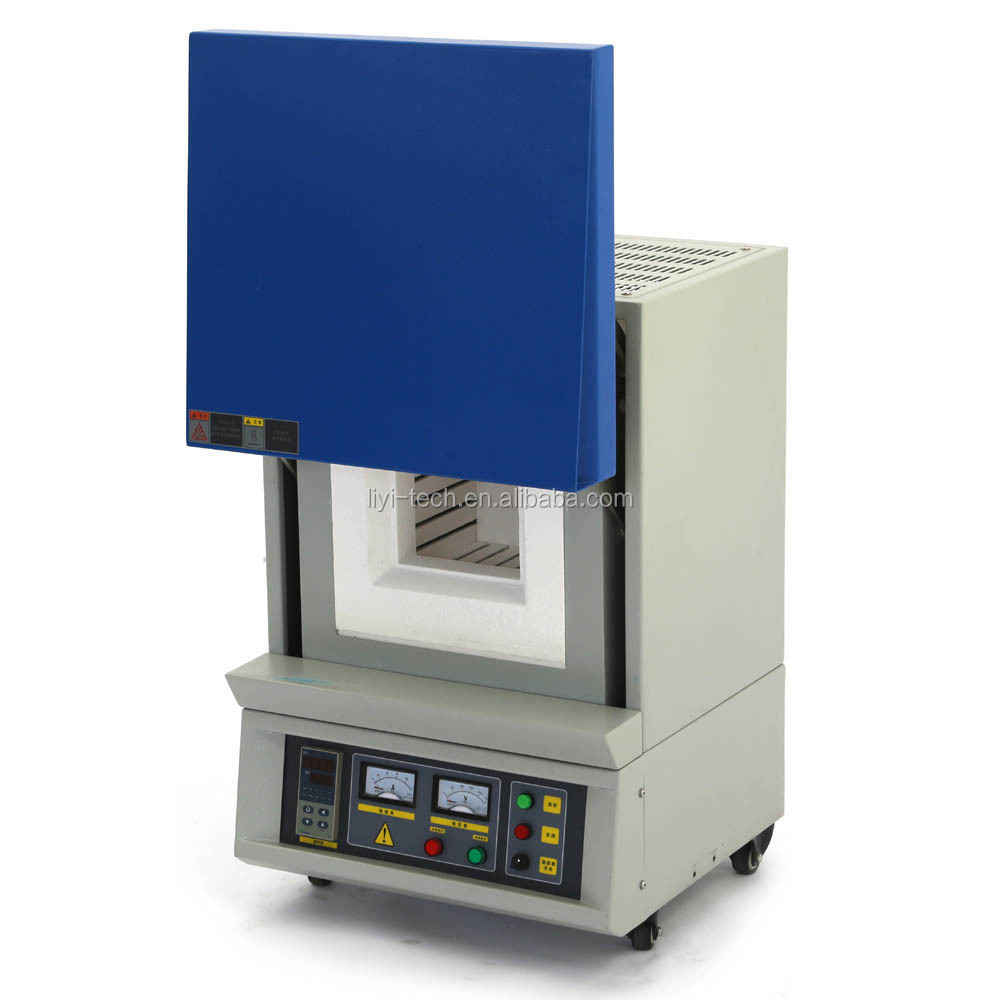

Laboratory Mini Muffle Furnace 1700°C High Temperature Oven

This laboratory mini muffle furnace features a 1700°C high temperature oven with advanced heating technology and intelligent temperature control. The unit utilizes high-quality silicon molybdenum rod heating elements within a dual shell structure for optimal performance and safety.

Key Features
  • Dual shell structure with intelligent auto-control temperature system
  • SCR control with phase shifting trigger for precise temperature management
  • 1700°C type imported polycrystalline alumina fiber furnace chamber
  • Intelligent cooling system activates at 50°C surface temperature
  • Constant current soft-start control extends heating element life
  • Color LED display for clear temperature monitoring

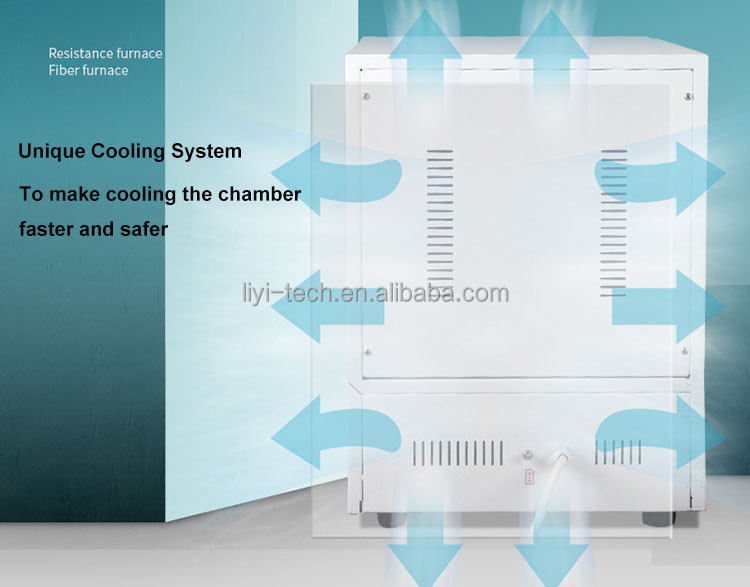

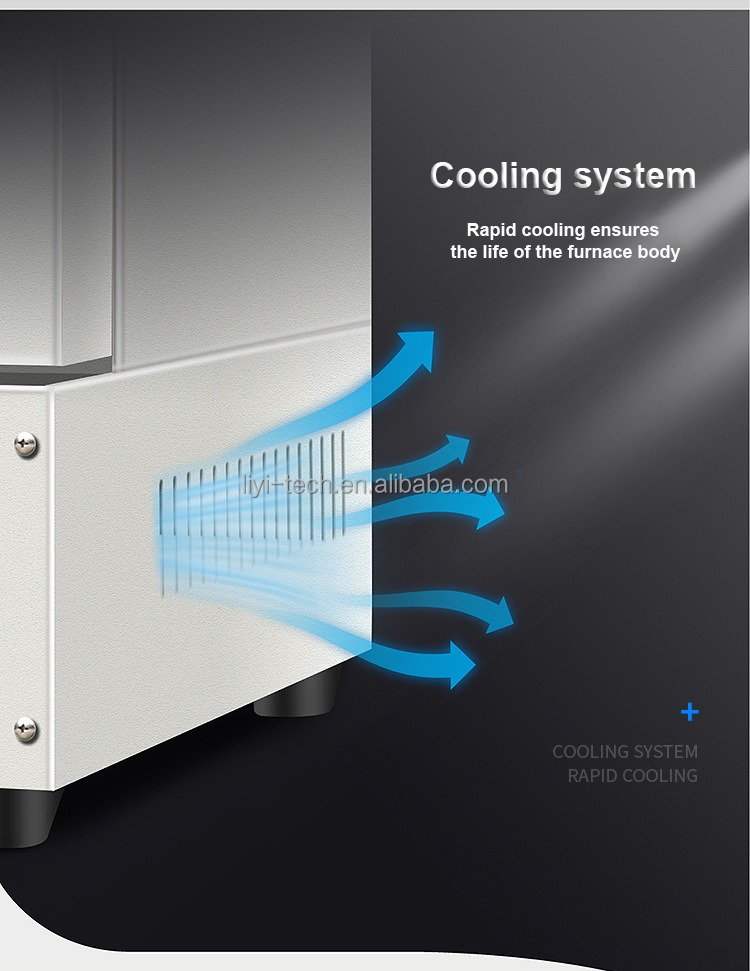

  • Double-layer forced air-cooling structure for safety
Technical Specifications
Model LY-5-12TP LY-5-13TP
Furnace size (W×H×D) mm 200×150×150 300×200×200
Outer size (W×H×D) mm 700×670×930 750×660×1020
Weight (Kg) 190 300
Power rating 5KW 9KW
Power supply 220V/380V 50/60HZ
Temperature control precision ±1℃
Maximum temperature 1800℃
Heating rate 0-30℃/min (recommended less than 20℃/min)
Thermocouple Type B
Heating element Silicon molybdenum rod
Furnace material High alumina polycrystalline ceramic fiber
Product Images
1700℃ Laboratory Muffle Furnace with 30℃/min Heating Rate 0 1700℃ Laboratory Muffle Furnace with 30℃/min Heating Rate 1 1700℃ Laboratory Muffle Furnace with 30℃/min Heating Rate 2 1700℃ Laboratory Muffle Furnace with 30℃/min Heating Rate 3 1700℃ Laboratory Muffle Furnace with 30℃/min Heating Rate 4
Company Profile

Dongguan Liyi Environmental Technology Co., Ltd is a high technology supported production-oriented enterprise specializing in developing, manufacturing, and marketing various environmental testing equipment. Our company features advanced technology, experienced technical management personnel, and efficient professional service staff, supported by fine quality management and a comprehensive after-sales service system.

Our production base is located in Dongguan, Guangdong province, China, with an additional office in Kunshan, Jiangsu province to better serve customers in Eastern China. We serve customers from more than 150 countries and regions, committed to helping every customer establish testing labs to ensure product quality.

Frequently Asked Questions
1. Are you Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of environmental testing equipment in China. Every machine purchased from our factory comes with a 12-month warranty after shipment, including free maintenance. For sea transportation, we extend this to 14 months. Technical support is available via email or video chat, with solutions typically provided within 24-48 hours of problem confirmation.

2. What's the delivery term?

Standard machines are typically available from stock. For non-stock items, delivery time is usually 15-20 working days after deposit receipt. Urgent orders can be accommodated with special arrangements.

3. Do you accept customization service? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to customer requirements, including OEM and ODM services with your logo on the equipment.

4. How can I install and use the machine?

Most machines are shipped fully assembled - you simply need to connect the power cable to begin operation. We provide English operation videos via email, and can assist with on-site installation if necessary.

1700℃ Laboratory Muffle Furnace with 30℃/min Heating Rate 6
